37RC Hardness Horizontal Plate Lifting Clamp Hooks 0.75T

Name: 37RC Hardness Horizontal Plate Lifting Clamp Hooks 075T
Brand: Jentan
Price: 1 USD

Quality 37RC Hardness Horizontal Plate Lifting Clamp Hooks 0.75T wholesale

Place of Origin : China

Brand Name : Jentan

Certification : CE;GS;EN;ISI;AU;UL;CUL;TUV

MOQ : 1 piece

Price : Negotiation

Delivery Time : 7-60 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500000pcs per year

Model Number : JTLC-C

Usage : Vertical Lifting, Horizontal Lifting, Inclined Lifting

Mobility : Stationary, Mobile

Product Type : Lifting Equipment

Warranty : 1-5 years

Operation : Manual, Semi-Automatic, Fully Automatic

Application : Industrial, Construction, Warehousing, Manufacturing

Certifications : CE, ISO, ANSI, OSHA

Lifting Height : Up to 100 feet

Material : Steel, Aluminum, Alloy

Safety Features : Overload Protection, Emergency Stop, Safety Locks

Load Capacity : Up to 50 tons

Size : Various sizes available

Customization : Available upon request

Power Source : Electric, Hydraulic, Pneumatic

Contact Now

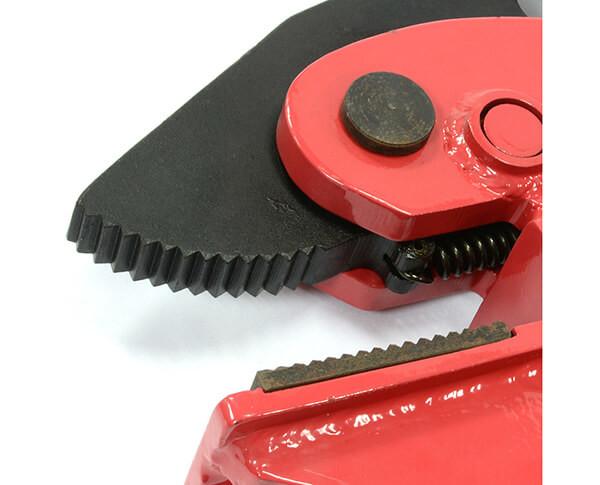

JTLC-C Horizontal Lifting Clamp

Designed for lifting non-bending steel plates and transporting them in a horizontal position.
Suitable for hoisting steel plates with a hardness of up to 37RC (345HB).
Crafted from high-quality, low-carbon alloy steel through precision forging.
The rated load applies when the clamp is used in pairs, with the maximum weight achievable at an included angle of 60 degrees.
Always intended for use in pairs for optimal safety and performance.
When lifting long steel plates, ensure a balanced approach.
Clearly indicated on the lifting clamps are the rated load capacity and the size of the jaw opening.
Each plate grip undergoes a test load at 2X the rated load capacity.
Avoid overloading to ensure safe usage.
Prior to use, please read the owner's manual for proper guidelines and instructions.

37RC Hardness Horizontal Plate Lifting Clamp Hooks 0.75T

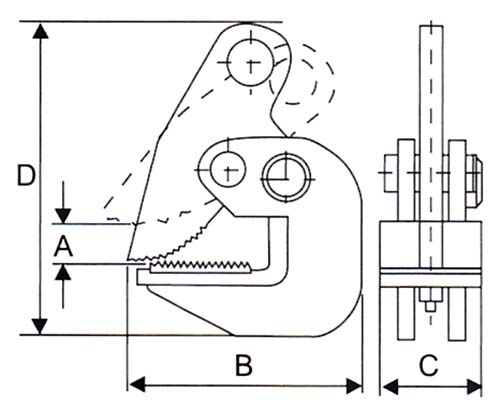

Model	Rated Capacity(t)	Test Load(t)	Jaw opening(mm)	N.W(Kg)
0.75T	0.75	1.5	0-25	2.4
1T	1	2	0-30	3.4
2T	2	4	0-35	5.4
3T	3	6	0-40	6
4T	4	8	0-45	6.3
5T	5	10	0-55	7.5
